This 150T/H - 200T/H complete stone crushing plant (Medium Hard Rock) in the range capable of processing aggregates and sand at up to 200 T/H.

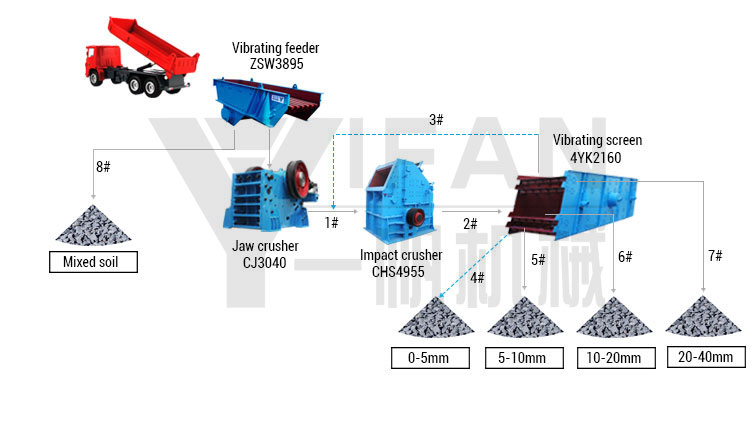

Note: This technological process is just for referance. All the parameters in the figure dot represent actual parameters, the final results will differ according to stone characters.
|
NO.
|
EQUIPMENT
|
MODEL
|
MOTOR(kw)
|
NUMBER
|
|
1
|
Vibrating feeder
|
ZSW3895
|
11
|
1
|
|
2
|
Jaw crusher
|
CJ3040
|
110
|
1
|
|
3
|
Impact crusher
|
CHS4955
|
200
|
1
|
|
4
|
Vibrating screen
|
4YK2160
|
30
|
1
|
BELT
|
NO.
|
WIDTH(mm)
|
LENGTH (m)
|
ANGLE(°)
|
MOTOR (kw)
|
|
1#
|
800
|
24
|
16
|
15
|
|
2#
|
800
|
28
|
16
|
15
|
|
3#
|
650
|
28
|
14
|
11
|
|
4-7#
|
500(FOUR)
|
20
|
16
|
5.5x4
|
|
8#
|
500
|
15
|
16
|
4
|
