This 600T/H - 800T/H complete stone crushing plant (Hard Rock) in the range capable of processing aggregates and sand at up to 800 T/H.

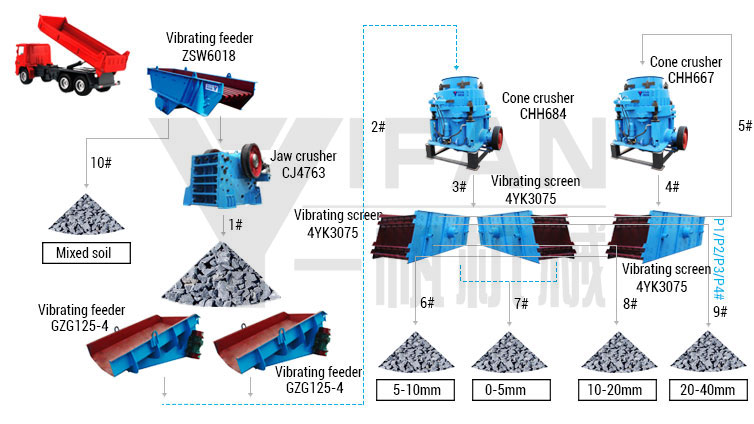

Note: This technological process is just for referance. All the parameters in the figure dot represent actual parameters, the final results will differ according to stone characters.
|
NO.
|
EQUIPMENT
|
MODEL
|
MOTOR(kw)
|
NUMBER
|
|
1
|
Vibrating feeder
|
ZSW6018
|
37
|
1
|
|
2
|
Jaw crusher
|
CJ4763
|
250
|
1
|
|
3
|
Hanging Feeder
|
GZG125-4
|
2x2X1.5
|
2
|
|
4
|
Cone crusher
|
CHH684
|
400
|
1
|
|
5
|
Cone crusher
|
CHH667
|
280
|
1
|
|
6
|
Vibrating screen
|
4YK3075
|
3x30x2
|
2
|
BELT
|
NO.
|
WIDTH(mm)
|
LENGTH (m)
|
ANGLE(°)
|
MOTOR (kw)
|
|
1#
|
1400
|
20
|
16
|
30
|
|
2#
|
1400
|
10+32
|
16
|
37
|
|
3/4#
|
1200
|
27
|
16
|
22
|
|
5#
|
1000
|
25
|
16
|
15
|
|
6-9#
|
800 (four)
|
20
|
16
|
11x4
|
|
10#
|
800
|
15
|
16
|
7.5
|
|
P1-P4#
|
800
|
12
|
0
|
5.5
|
