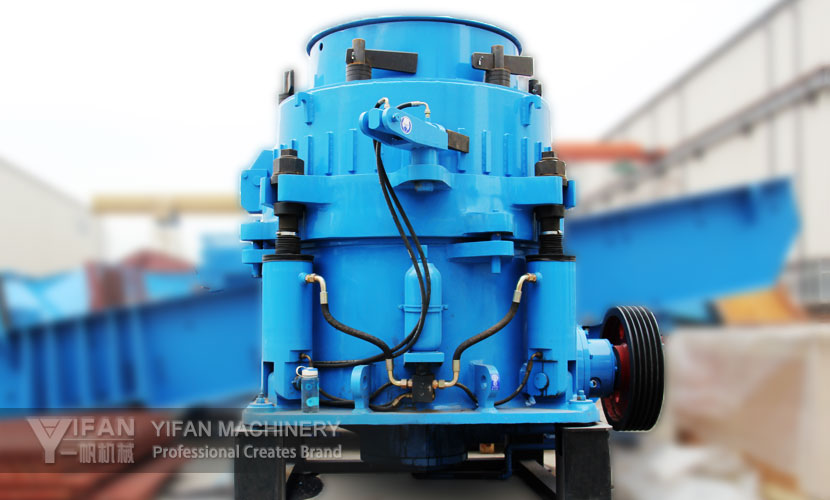

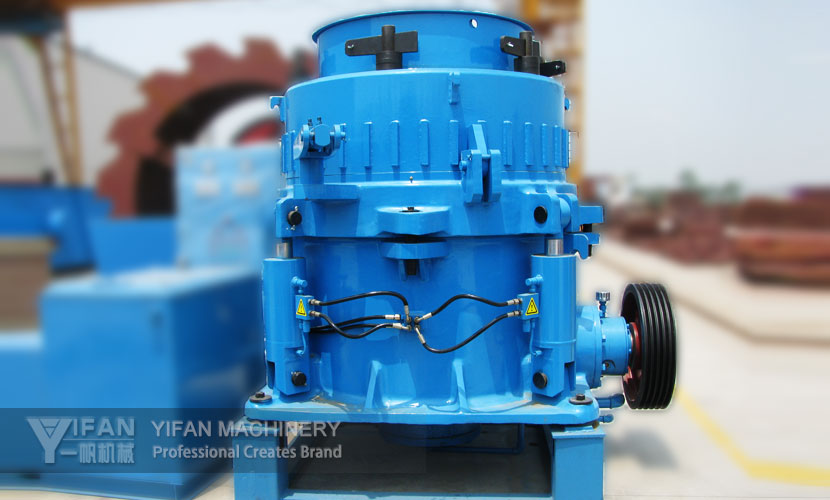

Intermediate crusher
Feed Size:60mm-360mm
Capacity:40-560t/h
Materials:Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.
Applications:Mining, metallurgy, construction, highway, railroad, water conservancy, etc.
1. Reasonable structure, developed crushing principle, advanced technical data, reliable work and low cost; 2. Strong crushing ability, high efficiency and large capacity; 3. Reliable hydraulic system and effective overload protection; 4. Optional crushing cavity can improve the material size range. 5. Hydraulic adjustment and hydraulic clean cavity can improve automation degree greatly.
|
Model
|
Type of Cavity
|
Max Feeding Size(mm)
|
Discharge Range(mm)
|
Motor Power(kw)
|
Capacity(t/h)--open circuit, closed discharge(mm)
|
|||||||||||
|
9
|
13
|
16
|
19
|
22
|
26
|
32
|
38
|
51
|
63
|
76
|
89
|
|||||
|
CCH639
|
C
|
160
|
22-33
|
75-90
|
|
|
|
|
120
|
130
|
150
|
|
|
|
|
|
|
M
|
130
|
13-26
|
|
65
|
85
|
100
|
120
|
130
|
|
|
|
|
|
|
||
|
F
|
50
|
9-19
|
40
|
60
|
80
|
90
|
|
|
|
|
|
|
|
|
||
|
CCH651
|
EC
|
260
|
26-51
|
185-200
|
|
|
|
|
|
250
|
290
|
340
|
395
|
|
|
|
|
C
|
220
|
19-51
|
|
|
|
182
|
209
|
236
|
279
|
334
|
365
|
|
|
|
||
|
M
|
150
|
16-38
|
|
|
125
|
140
|
165
|
220
|
275
|
330
|
|
|
|
|
||
|
F
|
80
|
9-22
|
70
|
90
|
115
|
130
|
150
|
|
|
|
|
|
|
|
||
|
CCH667
|
EC
|
315
|
38-24
|
250-280
|
|
|
|
|
|
|
|
555
|
649
|
766
|
|
|
|
C
|
230
|
26-64
|
|
|
|
|
|
366
|
430
|
468
|
629
|
657
|
|
|
||
|
M
|
205
|
22-52
|
|
|
|
|
266
|
299
|
348
|
393
|
451
|
|
|
|
||
|
F
|
180
|
16-38
|
|
|
188
|
212
|
234
|
267
|
305
|
337
|
|
|
|
|
||
|
CCH684
|
EC
|
450
|
38-89
|
400
|
|
|
|
|
|
|
|
890
|
1179
|
1380
|
1475
|
1566
|
|
C
|
350
|
32-76
|
|
|
|
|
|
|
800
|
850
|
1100
|
1288
|
1398
|
|
||
|
M
|
320
|
26-63
|
|
|
|
|
|
612
|
735
|
815
|
990
|
1137
|
|
|
||
|
F
|
268
|
19-52
|
|
|
|
376
|
412
|
500
|
620
|
725
|
867
|
|
|
|
||
Technical Data of the Short head hydraulic cone crusher :
|
Model
|
Type of Cavity
|
Max Feeding Size(mm)
|
Discharge Range(mm)
|
Motor Power(kw)
|
Capacity(t/h)--open circuit, closed discharge(mm)
|
||||||||||
|
3
|
5
|
6
|
9
|
13
|
16
|
19
|
22
|
26
|
32
|
38
|
|||||
|
CCH639D
|
C
|
70
|
6-19
|
75-90
|
|
|
59
|
68
|
96
|
110
|
130
|
|
|
|
|
|
M
|
51
|
5-16
|
|
45
|
59
|
68
|
96
|
110
|
|
|
|
|
|
||
|
F
|
35
|
3-13
|
30
|
45
|
50
|
65
|
90
|
|
|
|
|
|
|
||
|
CCH651D
|
C
|
89
|
9-22
|
185-200
|
|
|
|
100
|
120
|
175
|
210
|
|
|
|
|
|
M
|
70
|
6-16
|
|
|
105
|
130
|
160
|
|
|
|
|
|
|
||
|
F
|
54
|
5-16
|
|
80
|
90
|
110
|
135
|
160
|
|
|
|
|
|
||
|
CCH667D
|
EC
|
133
|
13-26
|
250-280
|
|
|
|
|
280
|
310
|
340
|
370
|
390
|
|
|
|
C
|
133
|
10-26
|
|
|
|
210
|
280
|
31
|
340
|
370
|
390
|
|
|
||
|
M
|
89
|
6-19
|
|
|
130
|
168
|
215
|
260
|
290
|
|
|
|
|
||
|
F
|
70
|
6-13
|
|
|
130
|
168
|
215
|
|
|
|
|
|
|
||
|
CCH684D
|
EC
|
203
|
16-26
|
400
|
|
|
|
|
|
510
|
600
|
630
|
680
|
|
|
|
C
|
178
|
13-26
|
|
|
|
|
455
|
488
|
552
|
600
|
620
|
|
|
||
|
M
|
133
|
10-19
|
|
|
|
355
|
420
|
460
|
530
|
|
|
|
|
||
|
F
|
105
|
6-16
|
|
|
220
|
310
|
375
|
428
|
|
|
|
|
|
||
Note:
1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m3. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
2.CCH651(D)and CCH684(D)standard configuration includes discharging opening of hydraulic locking and hydraulic motor adjustment, and you can choose CCH639(D),CCH651(D)as matching products.
