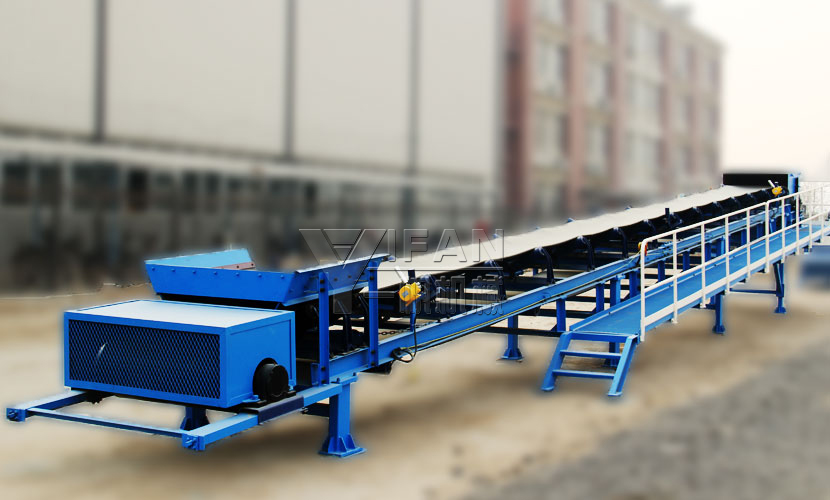

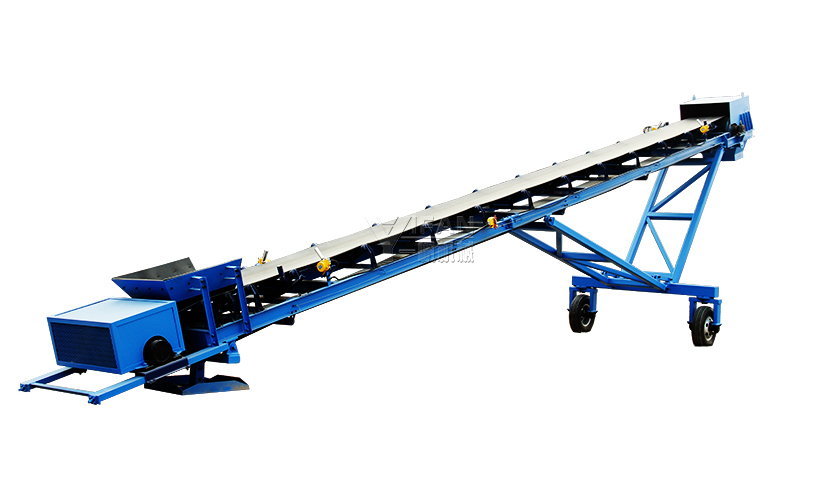

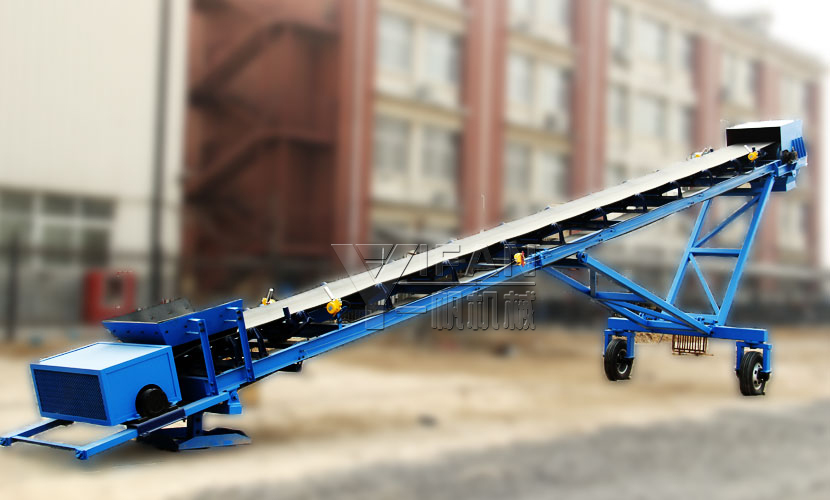

Belt Conveyor

Type:

Transport loose materials

Feed Size:

≤250 mm

Capacity:

40-1284 t/h

Materials:

Limestone, granite, river pebble, basalt, coal

Applications:

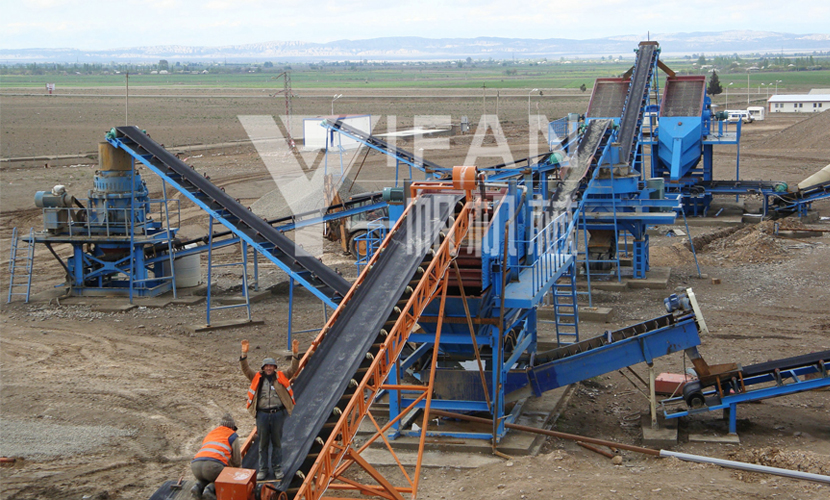

transportation and production lines of cement, mining, metallurgy, chemical, foundry, building materials

Overview

Belt Conveyors, using friction transmission principle for moving, can be used for connecting different equipments of the plants.It realizes continuous and automated operation of the production line and improves the production efficiency and reduces labor intensity.

Introduction

Structures and Features:

Belt conveyors are consisting of rack, belt, tension and transmission device etc. Two types of transmission modes: gear motor and electric roller.The rack connected with high quality steel plate with the following features and advantages: light weight,compact structure, reliable operation, high efficiency and easy maintenance.

Technical data

Belt Width(mm)	Belt Length(m) ----Power(m/w)			Transmission Speed(m/s)	Capacity(t/h)
400	0~12--1.5	12~20--2.2~4	20~25--4~7.5	1.3~1.6	40~80
500	0~12--3	12~20--4~5.5	20~30--5.5~7.5	1.3~1.6	78~191
650	0~12--4	12~20--5.5	20~30--7.5~11	1.3~1.6	131~323
800	0~6--4	6~15--5.5	15~30--7.5~15	1.3~1.6	278~546
1000	0~10--5.5	10~20--7.5~11	20~40--11~22	1.3~2.0	435~853
1200	0~10--7.5	10~20--11	20~40--15~30	1.3~2.0	655~1284
