River stone, gravel, granite, basalt, mineral, quartz, diabase, etc.
Applications:
Mining, metallurgy, construction, highway, railroad, water conservancy, etc.
Overview

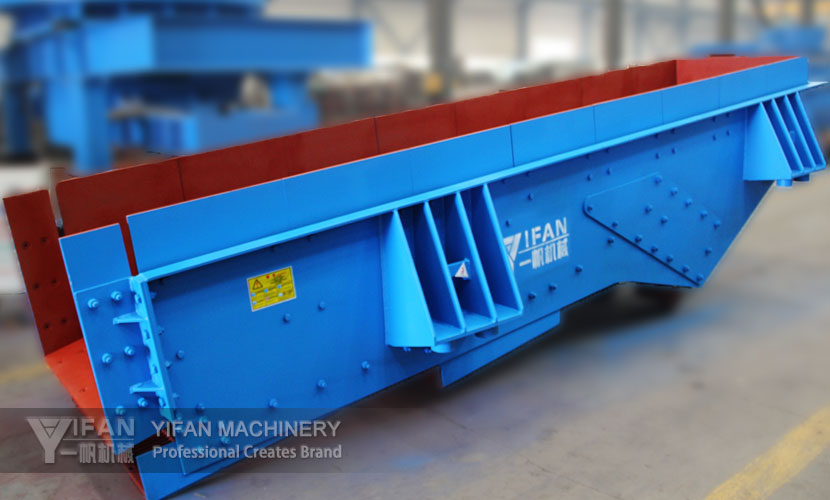

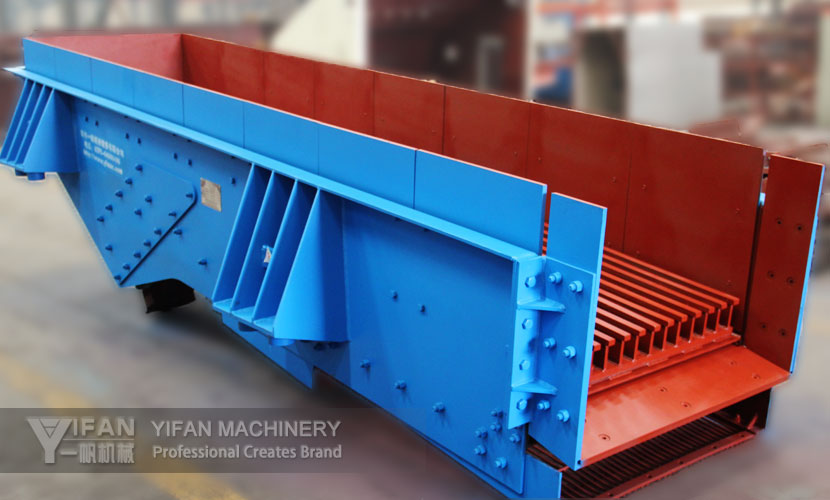

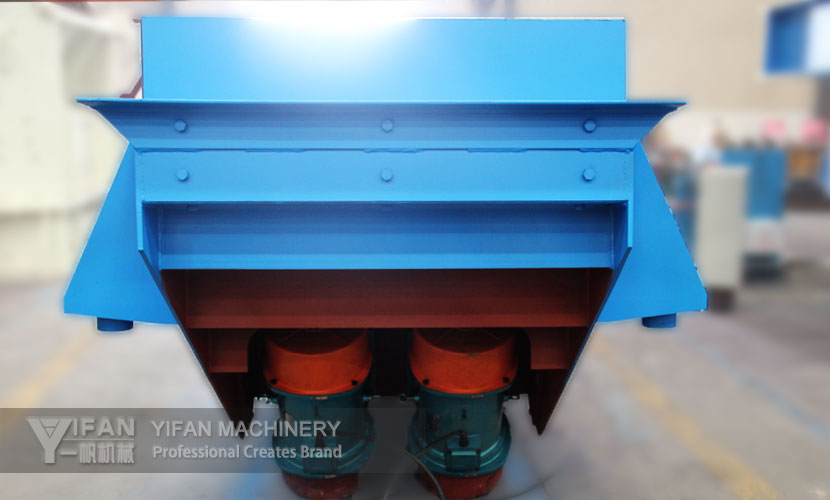

GZT series vibrating feeder uses vibrating motor to produce vibration force. It is used to feed materials into primary crusher homogeneously. Because of the bar-shaped screen, it can increase primary crushing capacity through filtering out filter out soil contained in raw materials. It is widely used in hydropower, building material and mining industries.
Introduction
1. Simple structure, reliable operation, and convenient installation. 2. This series have many models. It can be specially designed and manufactured according to customers' requirements. 3. Vibrating motor has the characteristics of low noise, low electricity consumption, and excellent adjustability.
Technical data
Model
Max feed size (mm)
Capacity(t/h)
Motor(KW)
Installation slope(°)
Weight(kg)
Double Amplitude(mm)
Overall Dimensions(LxWxH)(mm)
GZT-0724
450
30-80
2x1.5
10
1023
4-6
2481x1130x1037
GZT-0932
560
80-150
2x2.2
10
2248
4-8
3298x1512x1141
GZT-0940
560
80-180
2x3.7
10
3700
4-8
4100x1818x1134
GZT-1148
600
150-300
2x5.5
10
4892
4-8
4926x1676x1479
GZT-1256
800
180-400
2x12
10
6764
4-8
5704x1840x1707
GZT-1560
1000
400-600
2x13
10
9185
4-8
6126x2208x1588
Note:
Capacity is relative to physical character, feeding type, feeding size, composition, etc.
