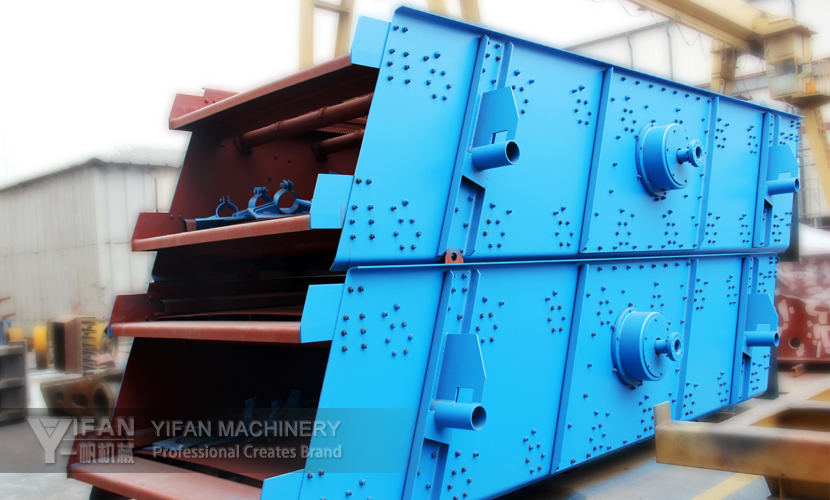

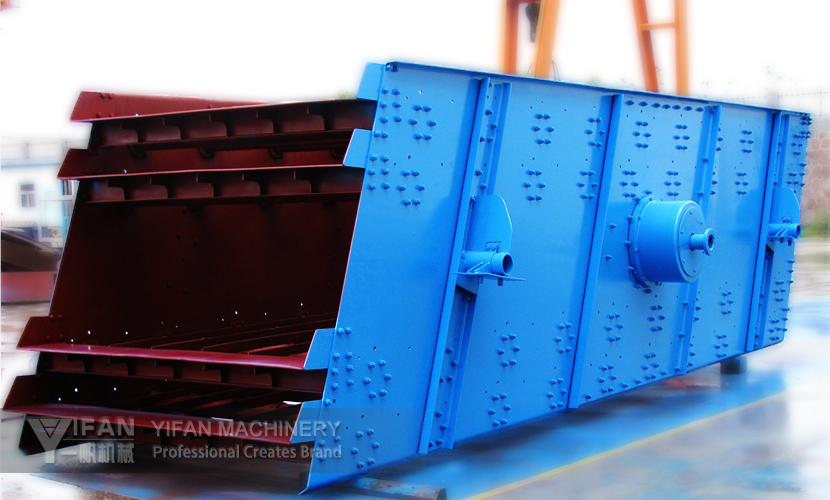

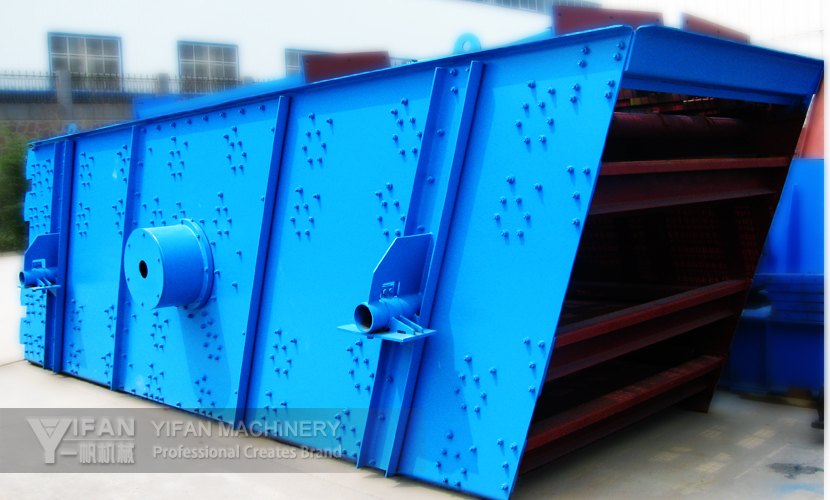

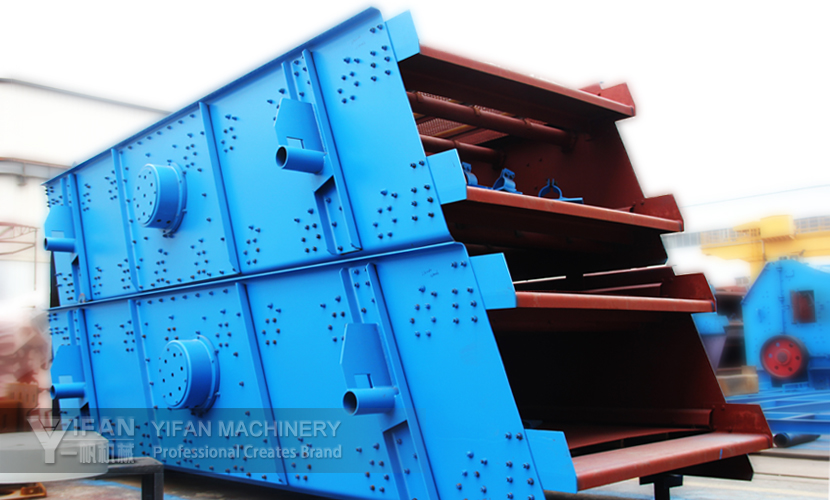

Screening equipment
Feed Size::≤450mm
Capacity:25-1080t/h
Materials:aggregate, coal
Applications:Ore dressing, building material, electric power, etc.
1. Strong exciting force provided by eccentric block;
2. High strength bolts without welding;
3. Simple structure and convenient maintenance;
4. Flexible connection ensured by tire couplings and smooth operation;
5. High screening efficiency, large capacity and long service life;
|
Model
|
Screen Deck
|
Installation Slope
|
Deck Size
|
Vibration
|
Double
|
Capacity(t/h)
|
Motor Power(Kw)
|
Overall Dimensions
|
Weight
|
|
(㎡)
|
Frequency
|
Amplitude
|
(L×W×H)
|
(Kg)
|
|||||
|
|
(r/min)
|
(mm)
|
(mm)
|
|
|||||
|
YK1235
|
1
|
15
|
4.2
|
970
|
6-8
|
20-180 |
5.5
|
3790×1847×1010 |
1845
|
|
2YK1235
|
2
|
15
|
4.2
|
970
|
6-8
|
20-180 |
5.5
|
4299×1868×1290 |
2982
|
|
3YK1235
|
3
|
15
|
4.2
|
970
|
6-8
|
20-180 |
7.5
|
4393×1868×1640 |
3922
|
|
4YK1235
|
4
|
15
|
4.2
|
970
|
6-8
|
20-180 |
11
|
4500×1967×2040 |
4821
|
|
YK1545
|
1
|
17.5
|
6.75
|
970
|
6-8
|
25-240 |
11
|
5030×2200×1278 |
3362
|
|
2YK1545
|
2
|
17.5
|
6.75
|
970
|
6-8
|
25-240 |
15
|
5767×2270×1550 |
5113
|
|
3YK1545
|
3
|
17.5
|
6.75
|
970
|
6-8
|
25-240 |
15
|
5874×2270×1885 |
6251
|
|
4YK1545
|
4
|
17.5
|
6.75
|
970
|
6-8
|
25-240 |
18.5
|
5994×2270×2220 |
7519
|
|
YK1548
|
1
|
17.5
|
7.2
|
970
|
6-8
|
28-270 |
11
|
5330×2228×1278 |
3418
|
|
2YK1548
|
2
|
17.5
|
7.2
|
970
|
6-8
|
28-270 |
15
|
6067×2270×1557 |
5266
|
|
3YK1548
|
3
|
17.5
|
7.2
|
970
|
6-8
|
28-270 |
15
|
5174×2270×1885 |
6453
|
|
4YK1548
|
4
|
17.5
|
7.2
|
970
|
6-8
|
28-270 |
18.5
|
6294×2270×2220 |
7845
|
|
YK1860
|
1
|
20
|
10.8
|
970
|
6-8
|
32-350 |
15
|
6536×2560×1478 |
4572
|
|
2YK1860
|
2
|
20
|
10.8
|
970
|
6-8
|
32-350 |
18.5
|
6826×2570×1510 |
5808
|
|
3YK1860
|
3
|
20
|
10.8
|
970
|
6-8
|
32-350 |
18.5
|
7145×2570×1910 |
7349
|
|
4YK1860
|
4
|
20
|
10.8
|
970
|
6-8
|
32-350 |
22
|
7246×2660×2244 |
8809
|
|
YK2160
|
1
|
20
|
12.6
|
970
|
6-8
|
40-720 |
18.5
|
6535×2860×1468 |
4940
|
|
2YK2160
|
2
|
20
|
12.6
|
970
|
6-8
|
40-720 |
22
|
6700×2870×1560 |
6438
|
|
3YK2160
|
3
|
20
|
12.6
|
970
|
6-8
|
40-720 |
30
|
7146×2960×1960 |
8665
|
|
4YK2160
|
4
|
20
|
12.6
|
970
|
6-8
|
40-720 |
30
|
7254×2960×2205 |
9933
|
|
YK2460
|
1
|
20
|
14.4
|
970
|
6-8
|
50-750 |
18.5
|
6535×3210×1468 |
5496
|
|
2YK2460
|
2
|
20
|
14.4
|
970
|
6-8
|
50-750 |
30
|
7058×3310×1760 |
8090
|
|
3YK2460
|
3
|
20
|
14.4
|
840
|
7-9
|
50-750 |
30
|
7223×3353×2220 |
11255
|
|
4YK2460
|
4
|
20
|
14.4
|
840
|
6-8
|
50-750 |
30
|
7343×3893×2445 |
13400
|
|
YK2475
|
1
|
20
|
18
|
840
|
6-8
|
60-850 |
20
|
7995×3300×1552 |
7004
|
|
2YK2475
|
2
|
20
|
18
|
840
|
6-8
|
60-850 |
30
|
8863×3353×1804 |
10685
|
|
3YK2475
|
3
|
20
|
18
|
840
|
6-8
|
60-850 |
37
|
8854×3353×2220 |
12727
|
|
4YK2475
|
4
|
20
|
18
|
840
|
6-8
|
60-850 |
45
|
8878×3384×2520 |
15822
|
|
YK3060
|
1
|
20
|
18
|
840
|
6-8
|
70-900 |
30
|
6545×3949×1519 |
9063
|
|
2YK3060
|
2
|
20
|
18
|
840
|
6-8
|
70-900 |
37
|
7282×3990×1919 |
12617
|
|
3YK3060
|
3
|
20
|
18
|
840
|
6-8
|
70-900 |
45
|
7453×4024×2365 |
15644
|
|
4YKD3060
|
4
|
20
|
18
|
840
|
6-8
|
70-900 |
2x30
|
7588×4127×2906 |
22189
|
|
YK3075
|
1
|
20
|
22.5
|
840
|
6-8
|
84-1080 |
37
|
7945×3949×1519 |
10871
|
|
2YK3075
|
2
|
20
|
22.5
|
840
|
6-8
|
84-1080 |
45
|
8884×4030×1938 |
17263
|
|
2YKD3075
|
2
|
20
|
22.5
|
840
|
6-8
|
84-1080 |
2x30
|
8837×4133×1981 |
20194
|
|
3YK3075
|
3
|
20
|
22.5
|
840
|
6-8
|
84-1080 |
55
|
9053×4030×2365 |
18713
|
|
3YKD3075
|
3
|
20
|
22.5
|
840
|
6-8
|
84-1080 |
2x30
|
9006×4127×2406 |
21717
|
|
2YKD3675
|
3
|
20
|
27
|
800
|
7-9
|
149-1620 |
2x45
|
8917×4847×1971 |
26641
|
|
3YKD3675
|
3
|
20
|
27
|
800
|
7-9
|
149-1620 |
2x45
|
9146×4847×2611 |
32856
|
Note:
The processing capacity listed in the table is based on dry classification of limestone, whose bulk density is 1.6t/m³.The listed capacity is only for reference. The actual data needs to be fixed by tech department according to worksite situation.
