River pebble, rock (limestone, granite, basalt, diabase, andesite, etc.)
Applications:
Construction waste, mine, mining, sand and cement company
Overview

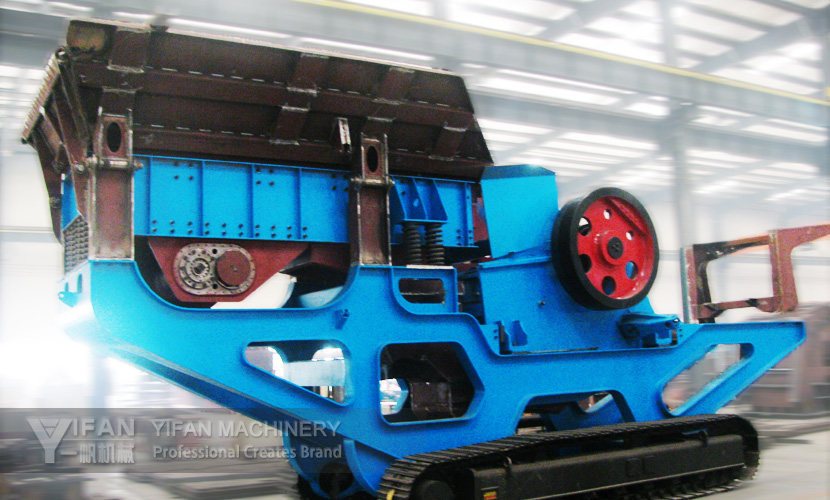

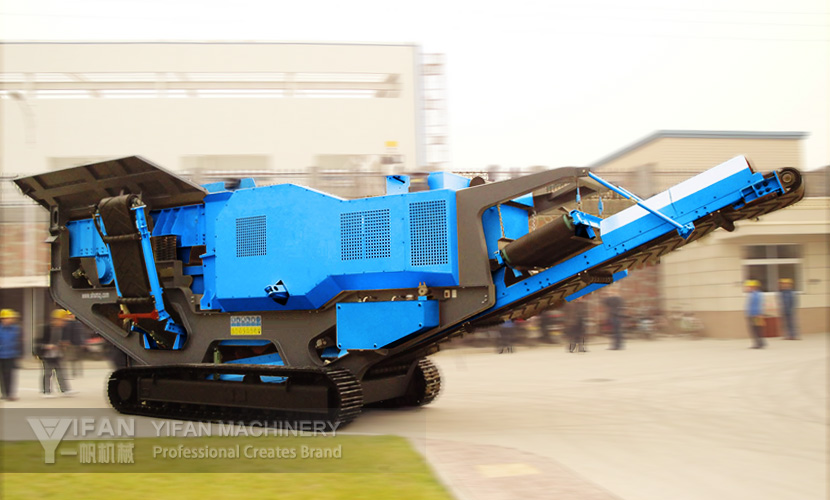

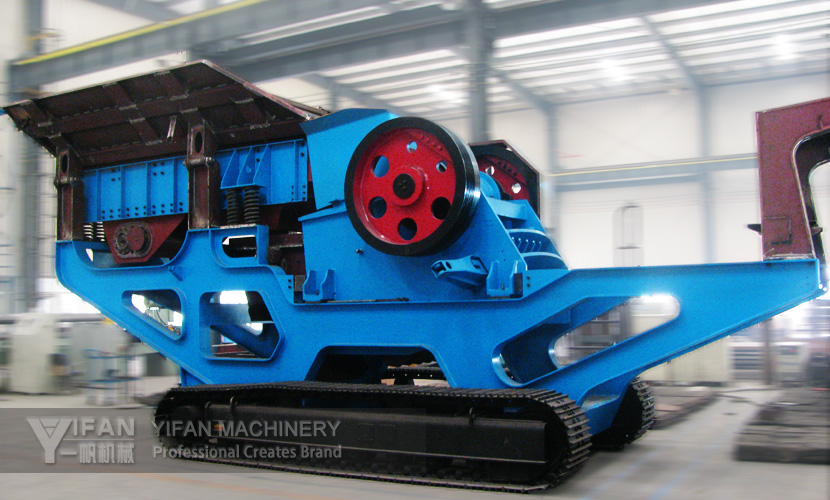

PT-J series mobile jaw crushing plant is designed and manufactured with Germany technology, and it has reached the word advanced level. The plant adopts first level mobile crushing technology which fully meets the customers’ requirements for mobile crushing and changes your profit mode.
Introduction
1. Fuel saving, environmental protection and low cost; 2. Light weight, small size and convenient transportation; 3. Attached power package adopts optimized design. 4. Pre-screening system can increase crushing efficiency greatly. 5. The double-deck sieving machinery its mobile screening equipment adopts can provide great support.
Technical data
PT-J Series Mobile Jaw Crushing Plants
PT-J6
PT-J7
PT-J8
PT-J10
Feed opening (mm × mm)
600 × 1020
760 × 1020
850 × 1100
1070 × 1400
Max feed size (mm)
500
630
720
950
Discharge setting (mm)
60-175
70-200
90-215
125-250
Crushing capacity (t/h)
85-280
120-490
160-510
360-800
Driving unit
Engine
Cummins Tier3
CAT C9
CAT C12
CAT C15
Power (kw)
164
242
317
390
Feed hopper
Hopper volume (m³)
6
7
8
10
Grizzly feeder with pre-screening
Model
GSF3712
GSF4316
GSF4316
GSF5920
Drive
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Main conveyor belt
Belt width (mm)
1000
1000
1200
1400
The unearthed belt conveyor
Belt width (mm)
650
650
650
650
Crawler unit
Drive
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Permannet magnetic separator
Magnetic separator
option
option
option
option
Dimensions and weight
Working dimensions
L x W x H (mm)
12600x4060x4160
14800x4100x4400
16000x4200x4400
16500x4300x6000
Transport dimensions
L x W x H (mm)
12600x2760x3460
14600x2850x3900
16000x3200x3800
16000x3500x3900
Weight (t) Approximately
39
48
65
115
Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
