Primary crusher
Feed Size:160-240mm
Capacity:40-390t/h
Materials:River pebble, rock (limestone, granite, basalt, diabase, andesite, etc.)
Applications:Stone mining, metallurgy industry, building material, highway, railway, and chemistry,etc.

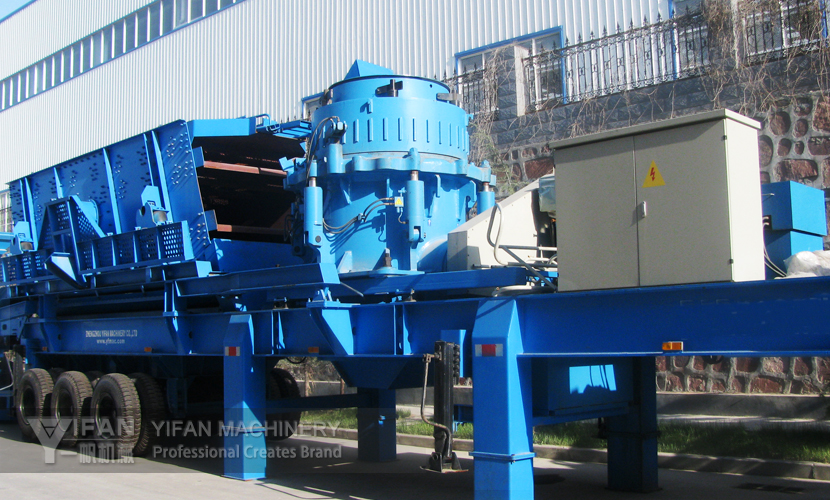

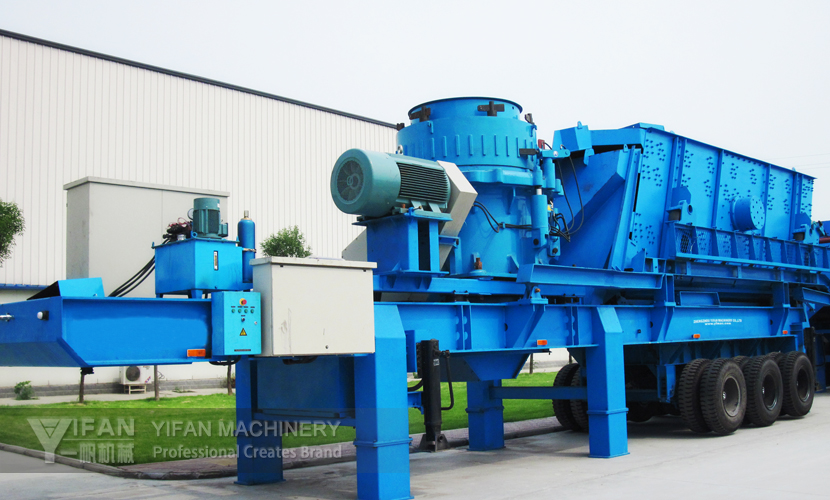

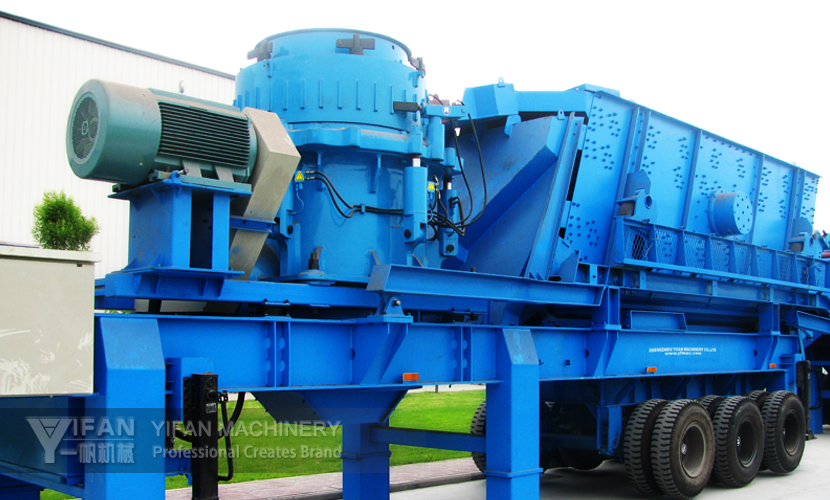

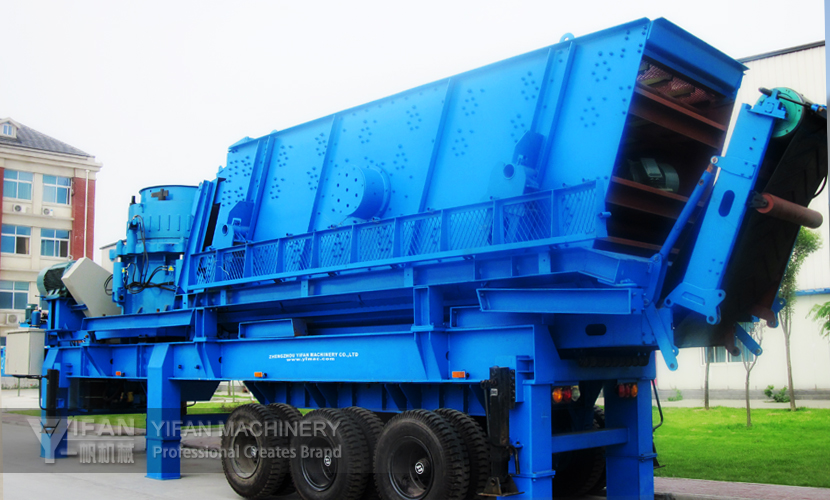

YIFAN mobile cone crushing plant has the advantage of reasonable matching, smooth discharging, reliable performance, convenient operation, high efficiency and energy conservation. Because of its supreme mobility performance, there is no need for customers to concern more about raw material place or construction place. Equipped with different configurations, it can produce products with different specifications.
Mobile cone crusher technical parameters Table I
|
Category
|
Model
|
||||||
|
Product Name
|
PP120SMH23S
|
PP120SMH33S
|
PP120SMH33S
|
PP120SMH34S
|
PP180SMH
|
PP180SMH42S
|
PP180SMH44S
|
|
Transport dimensions
|
|
||||||
|
Length
|
11840
|
13300
|
13920
|
13920
|
10000
|
13720
|
14800
|
|
Width
|
2780
|
2780
|
2780
|
2780
|
2780
|
2780
|
2865
|
|
Height
|
4360
|
4350
|
4360
|
4460
|
4160
|
4350
|
4550
|
|
Weight
|
31.8
|
31
|
33
|
34.4
|
22.4
|
37.3
|
42.9
|
|
Axle load
|
21.8
|
22
|
22.6
|
23.8
|
14.3
|
26
|
29
|
|
Kingpins/Axle load
|
50/10.0
|
50/9.0
|
90/10.1
|
90/10.6
|
50/8.1
|
50/11.5
|
90/14
|
|
Cone Crusher
|
|
||||||
|
Model
|
SMH120
|
SMH120
|
SMH120
|
SMH120
|
SMH180
|
SMH180
|
SMH180
|
|
Max feed size
|
50-160
|
50-160
|
50-160
|
50-160
|
60-180
|
60-180
|
60-180
|
|
Adjustment range of discharge port
|
9-32
|
9-32
|
9-32
|
9-32
|
9-32
|
9-32
|
9-32
|
|
Vibrating Screen
|
|
||||||
|
Model
|
3YK1235
|
3YK1545
|
3YK1548
|
4YK1548
|
no
|
2YK1860
|
4YK1860
|
|
belt conveyor
|
|
||||||
|
Model
|
no
|
B800X7.2Y
|
B800X7.4Y
|
B800X7.4Y
|
B1000X7.2Y
|
B1000X8.2Y
|
B1000X8.2Y
|
|
Axis Number
|
|
||||||
|
Model
|
Biaxial
|
Biaxial
|
Biaxial
|
Biaxial
|
Biaxial
|
Biaxial
|
Triaxial
|
Mobile cone crusher technical parameters Table II
|
Category
|
Model
|
|||||
|
Product Name
|
PP180SMH53S
|
PP250SMH
|
PP250SMH44S
|
PP250SMH52S
|
PP250SMH53S
|
PP250SMH54S
|
|
Transport dimensions
|
|
|||||
|
Length
|
14700
|
11200
|
15500
|
15250
|
15690
|
15690
|
|
Width
|
3040
|
2780
|
2865
|
3000
|
3290
|
3300
|
|
Height
|
4220
|
4180
|
4300
|
4500
|
4500
|
4510
|
|
Weight
|
45.1
|
36.1
|
55.6
|
55.8
|
53
|
54.4
|
|
Axle load
|
30.8
|
25.8
|
25.6
|
35.5
|
34.5
|
35.8
|
|
Kingpins/Axle load
|
90/14.3
|
50/10.3
|
90/20
|
90/20.3
|
90/18.5
|
90/18.6
|
|
Cone Crusher
|
|
|||||
|
Model
|
SMH180
|
SMH250
|
SMH250
|
SMH250
|
SMH250
|
SMH250
|
|
Max feed size
|
60-180
|
80-240
|
80-240
|
80-240
|
80-240
|
80-240
|
|
Adjustment range of discharge port
|
9-32
|
9-51
|
9-51
|
9-51
|
9-51
|
9-51
|
|
Vibrating Screen
|
|
|||||
|
Model
|
3YK2160
|
no
|
4YK1860
|
2YK2160
|
3YK2160
|
4YK2160
|
|
Belt conveyor
|
|
|||||
|
Model
|
B1000X6.5Y
|
B1000X7.2Y
|
B1000X8.2Y
|
B1000X8.2Y
|
B1000X8.2Y
|
B1000X8.2Y
|
|
Axis Number
|
|
|||||
|
Model
|
Triaxial
|
Biaxial
|
Triaxial
|
Triaxial
|
Triaxial
|
Triaxial
|
Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
