Screen rock, soil, sand, gravel and c & d materials
Applications:
Screening various quarries, building demolition waste, mining operation, etc.
Overview

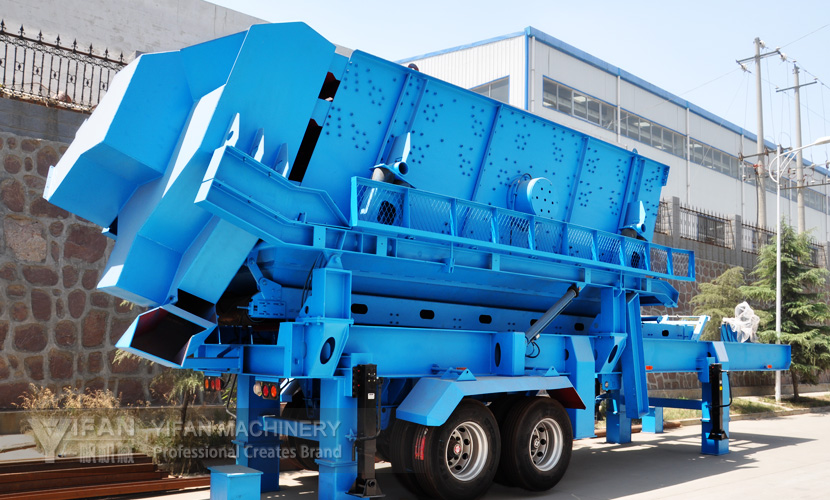

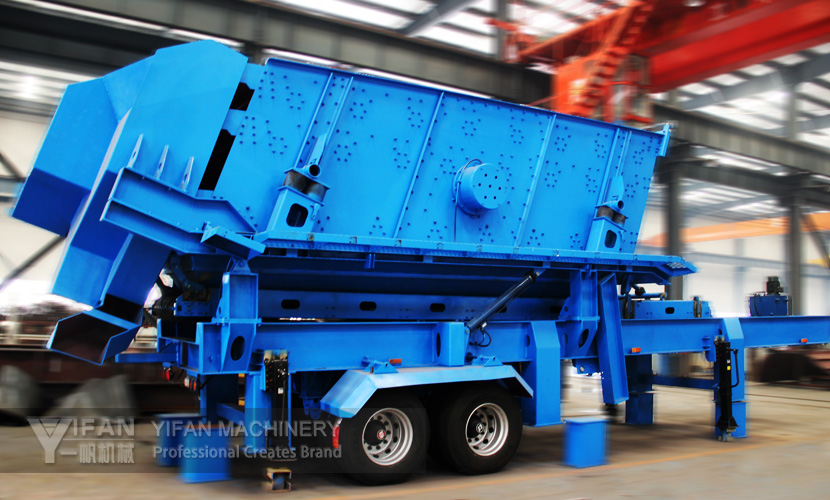

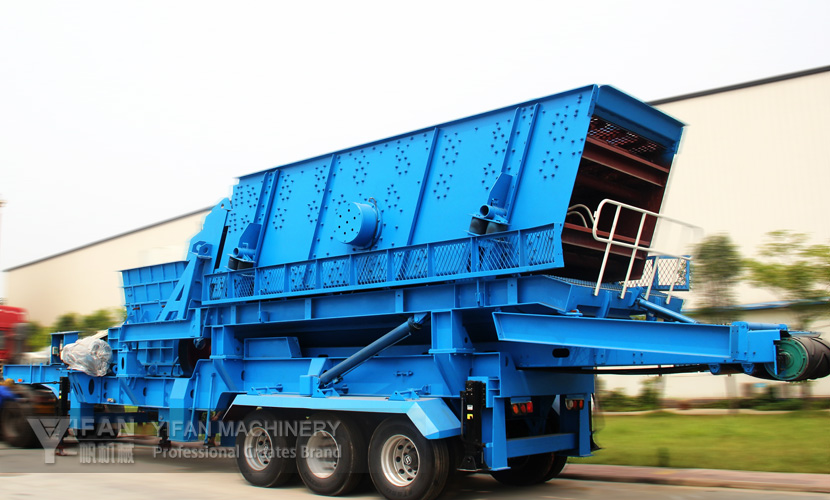

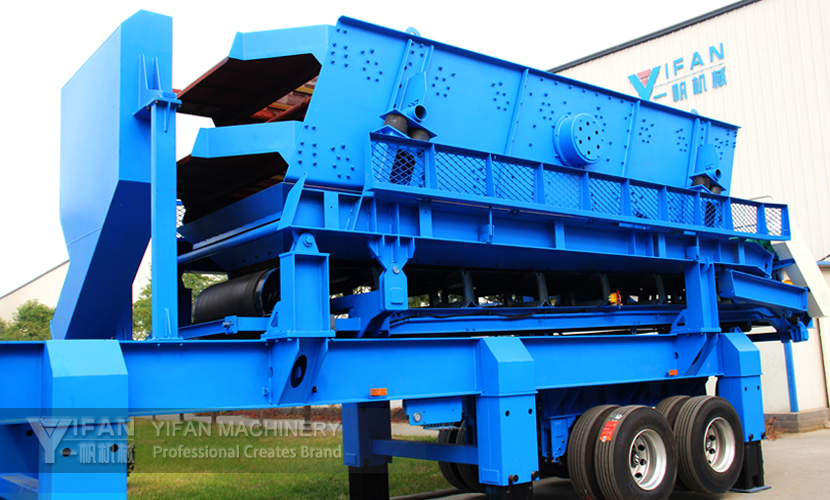

YIFAN PP1548s Portable Screening Plant is a patented aggregate screening plant designed to screen rock, soil, sand, gravel and building materials. It can produce three different sizes of products simultaneously. Its unique patented design allows feeding from three sides with a loader or excavator to accommodate any construction site.
Introduction
1. Equipped with a high-performance screening box; 2. Automated screening exercise and conditioning can achieve maximum screening efficiency. 3. The strict management of every operation unit can improve product life and reliability; 4. Low noise and low emission;
Technical data
Category
Model
Product Name
PP1548YK2S
PP1548YK3S
PP1860YK3S
PP2160YK2S
PP2160YK3S
PP2160YK4S
Transport dimensions
Length
14000
14740
13260
15230
16000
12680
Width
3300
2780
3180
3720
3100
4360
Width
4180
4500
4550
4500
4680
4560
Weight
22.9
23.9
22.8
28.6
33.2
24.8
Axle load
14.1
10.3
22.5
16.9
23.9
17.8
Kingpins/Axle load
50/9.8
50/13.6
50/2.3
50/11.7
50/9.3
50/7.0
Vibrating Screen
Model
2YK1548
3YK1548
3YK1860
2YK2160
3YK2160
4YK2160
Feeding belt conveyor
Model
B800X12Y
B800X12Y
no
B800X12Y
B1000X12.7Y
B800X12Y
sieve belt conveyor
Model
B650X7.5Y
B650X7.5Y
B800X8.2
B1000X8.2Y
B1000X8.2Y
no
Axis Number
Axis Number
Biaxial
Biaxial
Biaxial
Biaxial
Biaxial
Biaxial
Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
