River pebble, rock (limestone, granite, basalt, dolerite, andesite, etc.)
Applications:
Stone mining, metallurgy industry, building material, highway, railway, chemistry, etc.
Overview

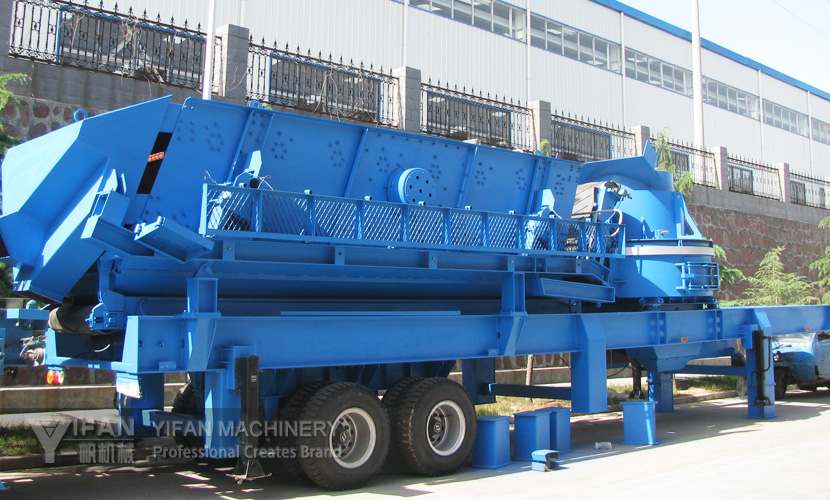

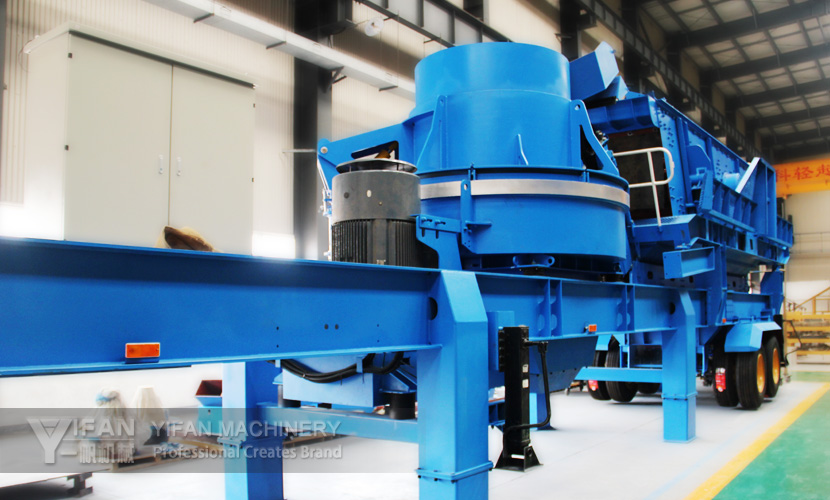

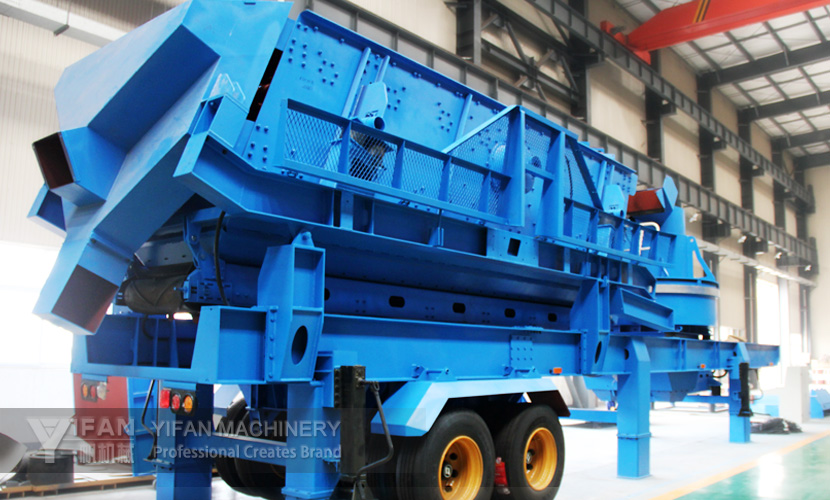

PP series portable vertical shaft impact crushing plant is used to crush large materials in two stages, and then screen the crushed materials according to different specifications. It is composed of primary crushing and screening station, secondary crushing and screening station, belt conveyor, etc. Every crushing station is an independent working unit and they can respectively assume their different responsibilities. Belt conveyer is responsible for material delivery.
Introduction
PP series portable vertical shaft impact crushing plant has the advantage of reasonable matching, unobstructed discharge, reliable performance, convenient operation, high efficiency and saving energy. Because of its supreme mobility performance, there is no need for customers to concern more about raw material place or construction place. Equipped with different configurations, it can produce products with different specifications.
Technical data
Category
Model
VSI PLANTS
PP5000VS
PP5000VS33S
PP6000VS
PP6000VS42S
PP6000VS43S
PP7000VS
PP7000VS51S
PP7000VS52S
Transport dimensions
Length(mm)
9800
11280
11500
15470
15050
11000
15420
14980
Width(mm)
2490
2780
2780
2780
2780
2780
2780
3100
Height(mm)
4200
2500
2850
4180
4380
3820
3250
4170
Weight(kg)
21.6
28
20
32.6
32.9
23.2
32.7
38.7
Axle weight(kg)
14.6
19.2
14
22.3
23.8
15
21.1
27.5
King pin weight(kg)
50/7.0
50/8.8
50/6.0
50/10.3
50/9.1
50./8.2
50/11.5
90/11.2
VSI CRUSHER
Model
VS5000BD
VS5000BD
VS5000BD
VS6000BD
VS6000BD
VS7000BD
VS7000BD
VS7000BD
Maximum feed size
65（80）
65（80）
65（80）
70（100）
70（100）
70（100）
70（100）
70（100）
throughput capacity range（t / h）
80-150
80-150
80-150
120-250
120-250
180-350
180-350
180-350
Screen
Model
3YK1545
2YK1860
3YK1860
YK2160
2YK2160
Belt conveyor
Model
B650X6.5Y
B800X7.2Y
B800X6.7Y
B1000X8.6Y
B800X7.4Y
B1000X6.4Y
B1000X8.6Y
B1000X8.2Y
Number of axles
Model
1
2
2
2
2
2
2
3
Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
